Practical: MD and MC

!pip install asap3

from ase.md.velocitydistribution import MaxwellBoltzmannDistribution,Stationary
from ase.md.nvtberendsen import NVTBerendsen
from ase.md.verlet import VelocityVerlet
from ase.md.npt import NPT
from ase.md import MDLogger
from ase import units
import os
from time import perf_counter


def run_md(atoms, calculator, ensemble, time_step, temperature, num_md_steps, num_interval, output_filename):
    # Set calculator (EMT in this case)
    atoms.calc = calculator

    # Set the momenta corresponding to the given "temperature"
    MaxwellBoltzmannDistribution(atoms, temperature_K=temperature,force_temp=True)
    Stationary(atoms)  # Set zero total momentum to avoid drifting

    # Set output filenames
    log_filename = output_filename + ".log"
    print("log_filename = ",log_filename)
    traj_filename = output_filename + ".traj"
    print("traj_filename = ",traj_filename)

    # Remove old files if they exist
    if os.path.exists(log_filename): os.remove(log_filename)
    if os.path.exists(traj_filename): os.remove(traj_filename)

    # Define the MD dynamics class object
    if ensemble == 'nve':
        dyn = VelocityVerlet(atoms,
                             time_step * units.fs,
                             trajectory = traj_filename,
                             loginterval=num_interval
                            )
    elif ensemble == 'nvt':
        dyn = NVTBerendsen(atoms,
                           time_step * units.fs,
                           temperature_K=temperature,
                           taut=100.0 * units.fs,
                           trajectory = traj_filename,
                           loginterval=num_interval
                          )
    elif ensemble == 'npt':
        sigma   = 1.0     # External pressure in bar
        ttime   = 20.0    # Time constant in fs
        pfactor = 2e6     # Barostat parameter in GPa
        dyn = NPT(atoms,
          time_step*units.fs,
          temperature_K = temperature,
          externalstress = sigma*units.bar,
          ttime = ttime*units.fs,
          pfactor = pfactor*units.GPa*(units.fs**2),
          logfile = log_filename,
          trajectory = traj_filename,
          loginterval=num_interval
          )
    else:
        raise ValueError("Invalid ensemble, must be nve, nvt, or npt")

    # Print statements
    def print_dyn():
        imd = dyn.get_number_of_steps()
        etot  = atoms.get_total_energy()
        temp_K = atoms.get_temperature()
        stress = atoms.get_stress(include_ideal_gas=True)/units.GPa
        stress_ave = (stress[0]+stress[1]+stress[2])/3.0
        elapsed_time = perf_counter() - start_time
        print(f"  {imd: >3}   {etot:.3f}    {temp_K:.2f}    {stress_ave:.2f}  {stress[0]:.2f}  {stress[1]:.2f}  {stress[2]:.2f}  {stress[3]:.2f}  {stress[4]:.2f}  {stress[5]:.2f}    {elapsed_time:.3f}")


    dyn.attach(print_dyn, interval=num_interval)

    # Set MD logger
    dyn.attach(MDLogger(dyn, atoms, log_filename, header=True, stress=True,peratom=True, mode="w"), interval=num_interval)

    # Now run MD simulation
    print(f"    imd     Etot(eV)    T(K)    stress(mean,xx,yy,zz,yz,xz,xy)(GPa)  elapsed_time(sec)")
    start_time = perf_counter()
    dyn.run(num_md_steps)

from asap3 import EMT
from ase.build import bulk

calculator = EMT()
# Set up a fcc-Cu crystal
atoms = bulk("Cu", "fcc", cubic=True, a=3.615)
atoms.pbc = True
atoms *= 3 # 3x3x3 supercell
print("atoms = ",atoms)

# input parameters
time_step    = 1.0      # MD step size in fsec
temperature  = 2000     # Temperature in Kelvin
num_md_steps = 100000   # Total number of MD steps
num_interval = 1000     # Print out interval for .log and .traj

output_filename = "./Cu_fcc_3x3x3"

ensemble = 'nvt'

run_md(atoms, calculator, ensemble, time_step, temperature, num_md_steps, num_interval, output_filename)

import pandas as pd

log_filename = output_filename + ".log"
df = pd.read_csv(log_filename, delim_whitespace=True, skiprows=1,
                 names=['Time[ps]','Etot/N[eV]','Epot/N[eV]','Ekin/N[eV]','T[K]','stress(xx)','stress(yy)','stress(zz)','stress(yz)','stress(xz)','stress(xy)'])
df

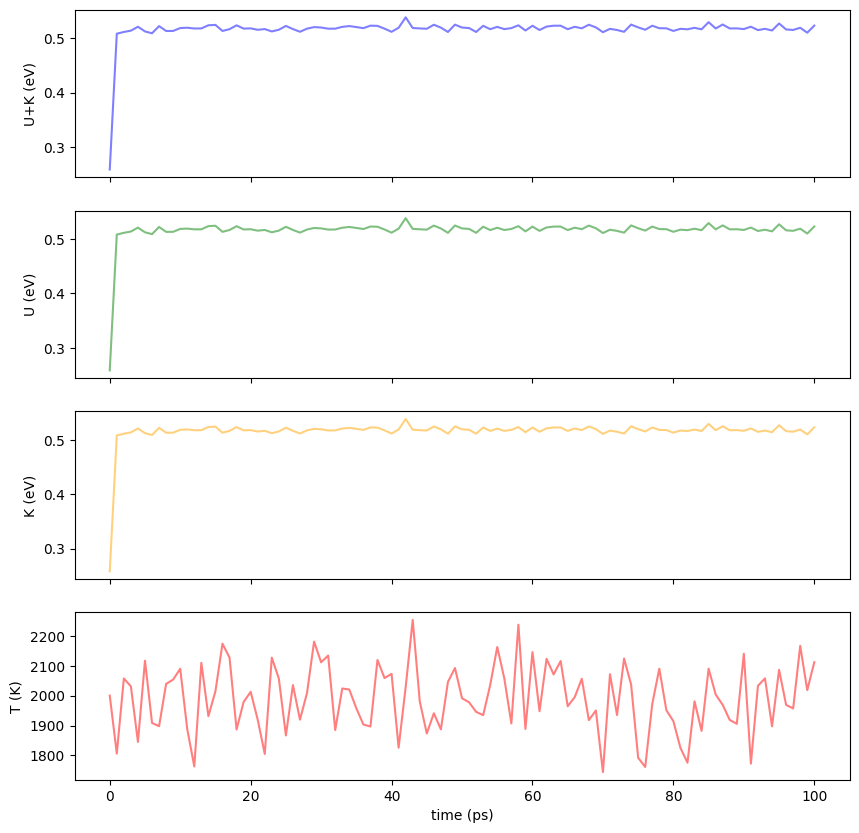

import matplotlib.pyplot as plt


fig = plt.figure(figsize=(10, 10))

#color = 'tab:grey'
ax1 = fig.add_subplot(4, 1, 1)
ax1.set_xticklabels([])
ax1.set_ylabel('U+K (eV)')
ax1.plot(df["Time[ps]"], df["Etot/N[eV]"], color="blue",alpha=0.5)

ax2 = fig.add_subplot(4, 1, 2)
ax2.set_xticklabels([])
ax2.set_ylabel('U (eV)')
ax2.plot(df["Time[ps]"], df["Etot/N[eV]"], color="green",alpha=0.5)

ax3 = fig.add_subplot(4, 1, 3)
ax3.set_xticklabels([])
ax3.set_ylabel('K (eV)')
ax3.plot(df["Time[ps]"], df["Etot/N[eV]"], color="orange",alpha=0.5)

ax4 = fig.add_subplot(4, 1, 4)
ax4.set_xlabel('time (ps)')
ax4.set_ylabel('T (K)')
ax4.plot(df["Time[ps]"], df["T[K]"], color="red",alpha=0.5)

plt.show()

!ase gui Cu_fcc_3x3x3.traj

from ase.build import bulk


# ASAP3-EMT calculator
calculator = EMT()

# Set up a crystal
atoms_in = bulk("Cu",cubic=True)
atoms_in *= 3
atoms_in.pbc = True
print("atoms_in = ",atoms_in)

calculator = EMT()
# Set up a fcc-Cu crystal
atoms = bulk("Cu", "fcc", cubic=True, a=3.615)
atoms.pbc = True
atoms *= 3 # 3x3x3 supercell
print("atoms = ",atoms)

# input parameters
time_step    = 1.0      # MD step size in fsec
num_md_steps = 20000   # Total number of MD steps
num_interval = 10     # Print out interval for .log and .traj
ensemble = 'npt'

temperature_list = [200,300,400,500,600,700,800,900,1000]

for temperature in temperature_list:
    output_filename = f"./Cu_fcc_3x3x3_NPT_T{temperature}"
    run_md(atoms, calculator, ensemble, time_step, temperature, num_md_steps, num_interval, output_filename)

!ase gui Cu_fcc_3x3x3_NPT_T1000.traj

import matplotlib.pyplot as plt
import numpy as np
from ase.io import read,Trajectory

time_step = 10.0  # Time step size between each snapshots recorded in traj
paths = [f"Cu_fcc_3x3x3_NPT_T{Temp}.traj" for Temp in temperature_list]
path_list = sorted([ p for p in paths ])

# Temperature list extracted from the filename
temperature = [float(p.split("_T")[1].split('.traj')[0]) for p in path_list]
print("temperature = ", temperature)

# Compute lattice parameter
lat_a = []
for path in path_list:
    print(f"path = {path}")
    traj = Trajectory(path)
    vol = [ atoms.get_volume() for atoms in traj ]
    lat_a.append(np.mean(vol[int(len(vol)/2):])**(1/3))

print("lat_a = ",lat_a)

# Normalize relative to the value at 300 K (which is at index 1 in the temperature_list)
norm_lat_a = np.array(lat_a)/lat_a[1]
print("norm_lat_a = ", norm_lat_a)
# Compute linear thermal expansion coefficient
# For linear thermal expansion coefficient α = (1/L)*(dL/dT)
# where L is the lattice parameter at reference temperature (300K)

# Using polyfit to get the slope of lattice parameter vs temperature
coef = np.polyfit(temperature, norm_lat_a, 1)
slope = coef[0]  # This is dL/dT normalized by L at 300K
alpha = slope  # Since we normalized by L at 300K, this is directly the coefficient

# Create a linear fit line for plotting
fit_line = np.polyval(coef, temperature)

# Print the thermal expansion coefficient
print(f"Linear thermal expansion coefficient: {alpha:.6e} K^-1")
# Plot

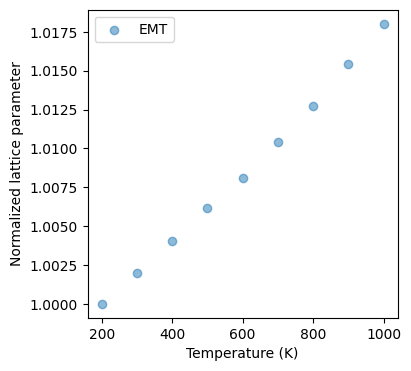

fig = plt.figure(figsize=(4,4))
ax = fig.add_subplot(1, 1, 1)
ax.set_xlabel('Temperature (K)')  # x axis label
ax.set_ylabel('Normalized lattice parameter')  # y axis label
ax.scatter(temperature[:len(norm_lat_a)],norm_lat_a, alpha=0.5,label='EMT')
ax.legend(loc="upper left")

!pip install numba

import numpy as np
import matplotlib.pyplot as plt
from numba import njit

@njit
def initial_state(N):
    """
    Generate an N x N lattice with spins ±1.
    For better compatibility with Numba, using explicit array creation
    instead of relying on random.randint with subtraction.
    """
    config = np.empty((N, N), dtype=np.int64)
    for i in range(N):
        for j in range(N):
            # Randomly assign -1 or 1
            config[i, j] = 1 if np.random.random() < 0.5 else -1
    return config

@njit
def mc_step(config, beta, J):
    """
    Perform one Monte Carlo sweep using the Metropolis algorithm.
    One sweep means N*N spin update attempts.

    Parameters:
      config: 2D numpy array of spins
      beta: 1/T (temperature inverse in natural units, with J=kB=1)
      neighbor_list: Dictionary of neighbors for each site (ignored in this implementation)
    Returns:
      Updated spin configuration.
    """
    N = config.shape[0]
    for _ in range(N*N):
        # Generate random coordinates for spin flip attempt
        i = np.random.randint(0, N)
        j = np.random.randint(0, N)
        s = config[i, j]

        # Calculate energy difference directly from neighbors
        nb_sum = 0
        nb_sum += config[(i+1) % N, j]
        nb_sum += config[(i-1) % N, j]
        nb_sum += config[i, (j+1) % N]
        nb_sum += config[i, (j-1) % N]

        # Energy change if we flip this spin
        dE = 2 * s * J * nb_sum

        # Metropolis acceptance criterion
        if dE <= 0 or np.random.random() < np.exp(-beta * dE):
            config[i, j] = -s

    return config

@njit
def calc_energy(config, J):
    """
    Calculate the total energy of the configuration.

    Hamiltonian: H = -J Σ_{<ij>} s_i s_j with J=1.
    Each neighbor pair is counted twice so we divide by 2.
    """
    N = config.shape[0]
    energy = 0
    for i in range(N):
        for j in range(N):
            S = config[i, j]
            # Calculate contribution from neighbors directly
            nb_sum = config[(i+1) % N, j] + config[(i-1) % N, j] + config[i, (j+1) % N] + config[i, (j-1) % N]
            energy += -S * J * nb_sum
    return energy / 2.0

@njit
def calc_magnetization(config):
    """
    Calculate the magnetization of the configuration.

    Magnetization: M = Σ s_i
    """
    return np.sum(config)

@njit
def run_simulation(N, T, n_equil, n_steps, J):
    """
    Run a simulation at a specific temperature and return results
    """
    beta = 1.0 / T
    config = initial_state(N)

    # Equilibration
    for _ in range(n_equil):
        config = mc_step(config, beta, J)

    # Measurement
    E_total = 0.0
    M_total = 0.0
    configs = np.zeros((n_steps//100 + 1, N, N), dtype=np.int64)
    configs[0] = config.copy()

    save_idx = 1
    for step in range(n_steps):
        config = mc_step(config, beta, J)
        E_total += calc_energy(config, J)
        M_total += abs(calc_magnetization(config))

        if step % 100 == 0 and save_idx < len(configs):
            configs[save_idx] = config.copy()
            save_idx += 1

    E_avg = E_total / (n_steps * N * N)
    M_avg = M_total / (n_steps * N * N)

    return E_avg, M_avg, configs

# Function to create animation
def create_ising_animation(N=64, T=2.27, n_equil=1000, n_steps=10000, J=1):
    import plotly.graph_objects as go

    _, _, configs = run_simulation(N, T, n_equil, n_steps, J)

    # Create initial figure
    fig = go.Figure(
        data=go.Heatmap(
            z=configs[0],
            colorscale='RdBu',  # Red-Blue colorscale similar to coolwarm
            showscale=True,
            colorbar=dict(title='Spin'),
            zmin=-1, zmax=1
        ),
        layout=go.Layout(
            title=f'Ising Model at T = {T:.2f}, Frame 0',
            width=700, height=700,
            updatemenus=[{
                'type': 'buttons',
                'buttons': [{
                    'label': 'Play',
                    'method': 'animate',
                    'args': [None, {'frame': {'duration': 100, 'redraw': True}, 'fromcurrent': True}]
                }, {
                    'label': 'Pause',
                    'method': 'animate',
                    'args': [[None], {'frame': {'duration': 0, 'redraw': False}, 'mode': 'immediate'}]
                }],
                'direction': 'left',
                'pad': {'r': 10, 't': 10},
                'showactive': False,
                'x': 0.1,
                'y': 0,
                'xanchor': 'right',
                'yanchor': 'top'
            }],
            sliders=[{
                'active': 0,
                'yanchor': 'top',
                'xanchor': 'left',
                'currentvalue': {
                    'visible': True,
                    'prefix': 'Frame: ',
                    'xanchor': 'right'
                },
                'transition': {'duration': 100},
                'pad': {'b': 10, 't': 50},
                'len': 0.9,
                'x': 0.1,
                'y': 0,
                'steps': [{
                    'method': 'animate',
                    'label': str(i),
                    'args': [[str(i)], {
                        'frame': {'duration': 100, 'redraw': True},
                        'mode': 'immediate',
                        'transition': {'duration': 100}
                    }]
                } for i in range(len(configs))]
            }]
        ),
        frames=[go.Frame(
                data=[go.Heatmap(z=configs[i])],
                name=str(i),
                layout=go.Layout(title_text=f'Ising Model at T = {T:.2f}, Frame {i}')
            ) for i in range(len(configs))
        ]
    )

    return fig

# Function to run full simulation with temperature sweep
def run_ising_simulation(N=64, temps=None, n_equil=1000, n_steps=10000, J=1):
    if temps is None:
        temps = np.linspace(1.5, 3.5, 21)

    magnetizations = []
    energies = []
    specific_heats = []

    for T in temps:
        print(f"Simulating T = {T:.2f}")
        E_avg, M_avg, configs = run_simulation(N, T, n_equil, n_steps, J)
        energies.append(E_avg)
        magnetizations.append(M_avg)

        # Calculate energy fluctuations for specific heat
        # Need to run an additional loop to collect E^2 samples
        beta = 1.0 / T
        config = configs[-1].copy()  # Use the last config as starting point
        E_total = 0.0
        E_squared_total = 0.0

        for _ in range(n_steps):
            config = mc_step(config, beta, J)
            E = calc_energy(config, J)
            E_total += E
            E_squared_total += E**2

        E_avg = E_total / n_steps
        E_squared_avg = E_squared_total / n_steps
        # Specific heat: C = (β^2 / N^2) * (<E^2> - <E>^2)
        C = (beta**2) * (E_squared_avg - E_avg**2) / (N**2)

        specific_heats.append(C)

        print(f"T = {T:.2f}, E = {E_avg:.3f} eV/spin, |M| = {M_avg:.3f}, C = {C:.3f}")

    # Create plot with 3 panels
    fig_mag, ax_mag = plt.subplots(figsize=(6, 5))
    fig_eng, ax_eng = plt.subplots(figsize=(6, 5))
    fig_heat, ax_heat = plt.subplots(figsize=(6, 5))

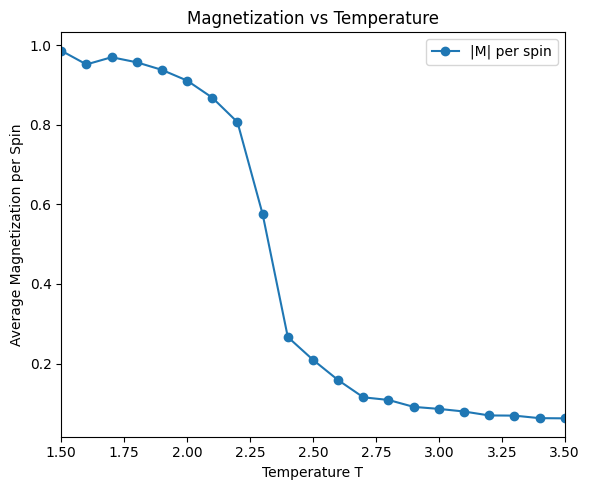

    ax_mag.plot(temps, magnetizations, 'o-', label='|M| per spin')
    ax_mag.set_xlabel('Temperature T')
    ax_mag.set_ylabel('Average Magnetization per Spin')
    ax_mag.set_title('Magnetization vs Temperature')
    ax_mag.set_xlim(temps[0], temps[-1])
    ax_mag.legend()

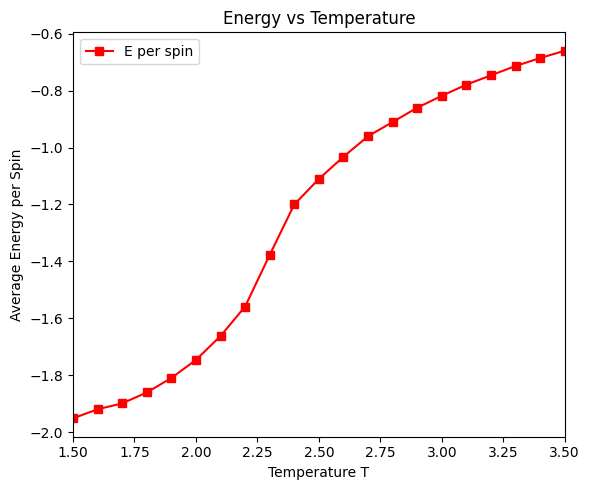

    ax_eng.plot(temps, energies, 's-', color='red', label='E per spin')
    ax_eng.set_xlabel('Temperature T')
    ax_eng.set_ylabel('Average Energy per Spin')
    ax_eng.set_title('Energy vs Temperature')
    ax_eng.set_xlim(temps[0], temps[-1])
    ax_eng.legend()

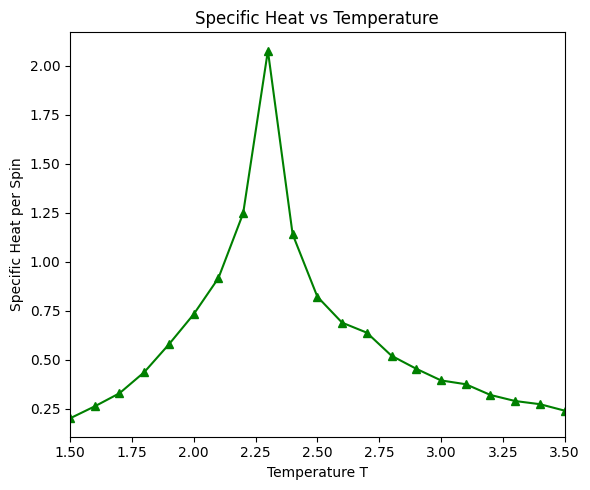

    ax_heat.plot(temps, specific_heats, '^-', color='green', label='C per spin')
    ax_heat.set_xlabel('Temperature T')
    ax_heat.set_ylabel('Specific Heat per Spin')
    ax_heat.set_title('Specific Heat vs Temperature')
    ax_heat.set_xlim(temps[0], temps[-1])


    fig_mag.tight_layout()
    fig_eng.tight_layout()
    fig_heat.tight_layout()
    fig_mag.show()
    fig_eng.show()
    fig_heat.show()


    return temps, magnetizations, energies, specific_heats

# Display animation for temperature near critical point
fig = create_ising_animation(N=32, T=2.3, n_equil=0, n_steps=5000, J=1)
fig.show()

# For full simulation with temperature sweep
run_ising_simulation(N=32, n_equil=1000, n_steps=10000, J=1)

fig = create_ising_animation(N=32, T=1, n_equil=0, n_steps=500, J=-1)
fig.show()
